KTM50/65 21-23  TC65 21-23 TC50 2022 Gas Gas 50/65 21-22 Sub Mount Kit

SCO-DS-SUB-5028-01

• KTM 50/65 21-23
• Husky TC65 21-23
• Husky TC50 2022
• Gas Gas 50/65 21-22

NOTE: This kit uses a Reducer Ring around the head tube to mount Frame Bracket. Use 5mm Supplied Spacer to space out number plate bracket and to prevent interference with frame bracket.

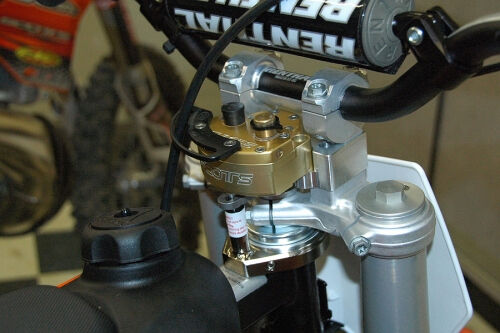

The complete kit is designed for use with the stock triple clamps. The SUB mount bolts to the stock triple clamp and uses the stock bar mounts. the bars can be run in positions #3 and #4. Positions #1 and #2 can not be used. This application will raise the bars 23mm. The cable guide shown in photo is included in this kit.

This kit is for models that come with oversize bars.

• Offers an approximately 1″ taller bar position
• Lower Bend Bars can be used to compensate for additional height.
• SUB Mounting reduces the risk of bodily injury
• Stabilizer is tucked away and protected from potential damage from a crash.

Shock Treatment is an authorized Scotts Stabilizer Dealer and Service center with an extensive knowledge of stabilizer mounting applications. We have a complete line of stabilizer mounting applications and replacement parts. When it comes to service we offer complete service on all Scotts stabilizers.

SPECIAL NOTES:

When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted “going under the body of the unit”. To reverse the link arm we recommend using a Scotts Link Arm Puller
